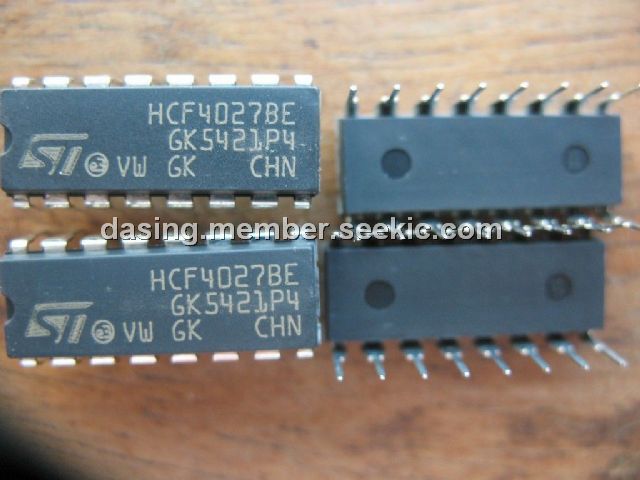

HCF4027BE

integrated circuit, DIP, –0.5 to + 18V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.40~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.40~1.00

PartNumber:: HCF4027BE

Brand:: STMicroelectronics - ST | Pack: DIP | D/C: 95+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sue ouyang's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-06

From Other Seller

Part Number:HCF4027BE
US $0.40 - 1.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

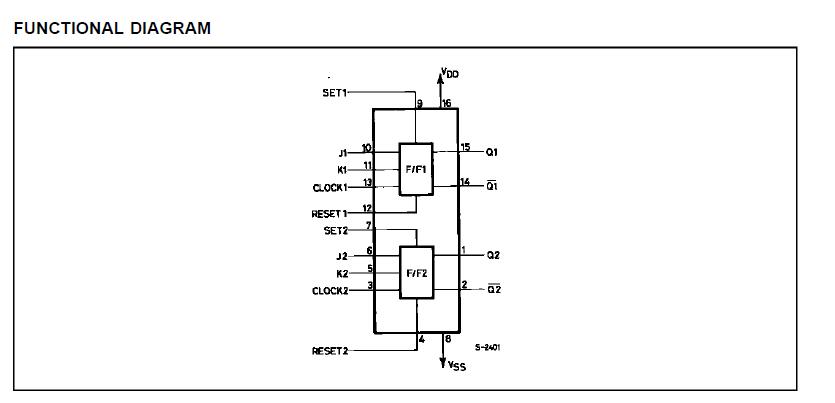

The HCF4027BE is a single monolithic chip integrated circuit containing two identical complementary-symmetry J-K master-slave flip-flops. Each flip-flop of the HCF4027BE has provisions for individual J, K, Set, Reset, and Clock input signals, Buffered Q and Q signals are provided as outputs. This input-output arrangement provides for compatible operation with the HCC/HCF4013B dual D-type flip-flop. The HCF4027BE is available in 16-lead dual in-line plastic or ceramic package and plastic micro package.

Parametrics

HCF4027BE absolute maximum ratings: (1)VDD* Supply Voltage: –0.5 to + 18V; (2)Vi, Input Voltage: –0.5 to VDD + 0.5V; (3)II, DC Input Current (any one input): ± 10mA; (4)Ptot, Total Power Dissipation (per package) Dissipation per Output Transistor: 200mW; for Top = Full Package-temperature Range: 100mW; (5)Top, Operating Temperature: –40 to + 85℃; (6)Tstg, Storage Temperature: –65 to + 150℃.

Features

HCF4027BE features: (1)set-reset capability static flip-flop operation - retains state indefinitely with clock level; (2)either high or low medium speed operation - 16MHz (typ clock toggle rate at 10V); (3)standardized symmetrical output characteristics; (4)quiescent current specified to 20V for hcc device; (5)Input currentof 100na at 18V and 25℃ For hcc device; (6)100% testedfor quiescent current meetsallrequirementsofjedectentative standard N0. 13A, Standard specifications for description of B seriescmos device.
