Product Summary

The HSMS-2818-TR1G is a Schottky diode. The device is specifically designed for both analog and digital applications. The device offers a wide range of specifications and package configurations to give the designer wide flexibility. The HSMS-2818-TR1G features very low flicker (1/f) noise.

Parametrics

HSMS-2818-TR1G absolute maximum ratings: (1)If, Forward Current (1 μs Pulse): 1Amp; (2)PIV, Peak Inverse Voltage: Same as VBR; (3)Tj, Junction Temperature: 150℃; (4)Tstg, Storage Temperature: -65 to 150℃; (5)θjc, Thermal Resistance: 500℃/W.

Features

HSMS-2818-TR1G features: (1)Surface Mount Packages; (2)Low Flicker Noise; (3)Low FIT (Failure in Time) Rate; (4)Six-sigma Quality Level; (5)Single, Dual and Quad Versions; (6)Tape and Reel Options Available; (7)Lead-free.

Diagrams

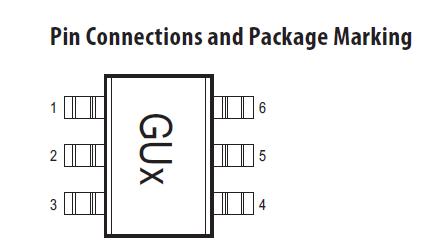

HSMS-2818-TR1G pin connections and package marking

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HSMS-2818-TR1G
HSMS-2818-TR1G

Avago Technologies

Schottky (Diodes & Rectifiers) 20 VBR 1.2 pF

Data Sheet

0-1: $1.12
1-25: $0.84
25-100: $0.74
100-250: $0.67
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HSMS-2700
HSMS-2700

Other


Data Sheet

Negotiable
HSMS-2700-BLKG
HSMS-2700-BLKG

Avago Technologies

Schottky (Diodes & Rectifiers) 15 VBR 6.7 pF

Data Sheet

0-3100: $0.10
3100-5000: $0.09
5000-10000: $0.09
HSMS-2700-TR1
HSMS-2700-TR1


DIODE SCHOTTKY 15V 350MA SOT-23

Data Sheet

Negotiable
HSMS-2700-TR1G
HSMS-2700-TR1G

Avago Technologies

Schottky (Diodes & Rectifiers) 15 VBR 6.7 pF

Data Sheet

0-3000: $0.10
3000-4000: $0.10
4000-6000: $0.09
6000-12000: $0.09
HSMS-2700-TR2G
HSMS-2700-TR2G

Avago Technologies

Schottky (Diodes & Rectifiers) 15 VBR 6.7 pF

Data Sheet

0-7200: $0.09
7200-10000: $0.09
HSMS-2702
HSMS-2702

Other


Data Sheet

Negotiable
