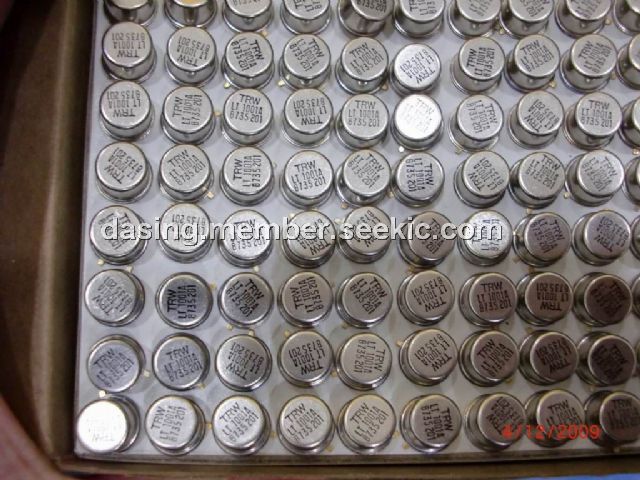

LT1001A

NPN silicon high frequency transistor, CAN, 20 V, 200 mA, 2.5 W

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.50~4.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.50~4.00

PartNumber:: LT1001A

Brand:: Motorola, Inc - Motorola | Pack: CAN | D/C: 93+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sue ouyang's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-06

From Other Seller

Part Number:LT1001A
US $2.50 - 4.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LT1001A is a NPN silicon high frequency transistor. It is designed for High Gain Low Noise CATV, and MATV Amplifier Applications.

Parametrics

LT1001A absolute maximum ratings: (1)IC: 200 mA; (2)VCE: 20 V; (3)PDISS: 2.5 W @ TC = 50 ℃; (4)TJ: -65 ℃ to +200 ℃; (5)TSTG: -65 ℃ to +200 ℃; (6)θJC: 70 ℃/W.

Features

LT1001A characteristics: (1)On the condition of IC = 5.0 mA, BVCEO: min=20 V; (2)On the condition of IC = 1.0 mA, BVCBO: min=40 V; (3)On the condition of IE = 100 μA, BVEBO: min=3.5 V; (4)On the condition of VCB = 10 V, ICBO: max=50 μA; (5)On the conditions of VCE = 5.0 V IC = 50 mA, hFE: min=70, max=300; (6)On the conditions of IC = 50 mA IB = 5.0 mA, VCE(SAT): typ=500 mV; (7)On the conditions of VCE = 14 V IC = 90 mA f = 300 MHz, ft: typ=3.0 GHz.
