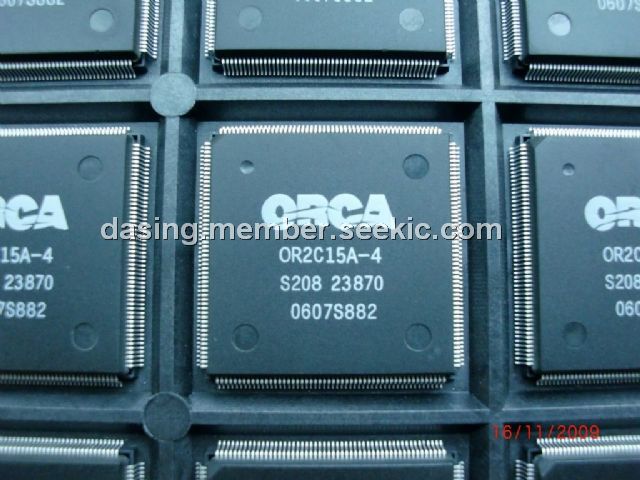

Product Summary
The OR2C15A-4S208 is a SRAM-based FPGA. It is an enhanced version of the ATT2C/2T architecture. The OR2C15A-4S208 includes patented architectural enhancements that make functions faster and easier to design while conserving the use of PLCs and routing resources. The OR2C15A-4S208 can be used as drop-in replacements for the ATT2Cxx/ATT2Txx series, respectively, and they are also bit stream compatible with each other.
Parametrics
OR2C15A-4S208 absolute maximum ratings: (1)Storage Temperature Tstg: –65 to 150 ℃; (2)Supply Voltage with Respect to Ground VDD: –0.5 to 7.0 V; (3)VDD5 Supply Voltage with Respect to Ground VDD5: VDD to 7.0 V; (4)Maximum Soldering Temperature: 260 ℃.
Features
OR2C15A-4S208 features: (1)High-performance, cost-effective, low-power 0.35 μm CMOS technology (OR2CxxA), 0.3 μm CMOS technology (OR2TxxA), and 0.25 μm CMOS technology (OR2TxxB), (four-input look-up table (LUT) delay less than 1.0 ns with -8 speed grade); (2)High density (up to 43,200 usable, logic-only gates; or 99,400 gates including RAM); (3)Up to 480 user I/Os (OR2TxxA and OR2TxxB I/Os are 5 V tolerant to allow interconnection to both 3.3 V and 5 V devices, selectable on a per-pin basis); (4)Four 16-bit look-up tables and four latches/flip-flops per PFU, nibble-oriented for implementing 4-, 8-, 16-, and/or 32-bit (or wider) bus structures; (5)Eight 3-state buffers per PFU for on-chip bus structures.

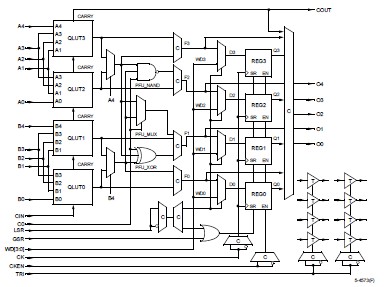

Diagrams
 |
