Product Summary
The SCDA2A0300 is a standard recovery, medium current center tap and doubler rectifier assembly.
Parametrics
SCDA2A0300 absolute maximum ratings: (1)Working reverse voltage VRWM: 200V; (2)Average rectified current(@ case temperature)55℃: 7.5A; 100℃: 5.0A, 125℃: 2.5℃; (@ ambient temperature)25℃: 2.5A, 55℃: 2.0℃; 100℃: 1.25℃; (3)1 cycle surge current tp=8.3mS 25℃: 150A; 100℃: 100A; (4)Repetitive surge current 25℃: 25A.
Features
SCDA2A0300 features: (1)Low forward voltage drop: VR=50-600V; (2)Low reverse leakage current: IF=15A; (3)Aluminum case: IR=1.0μA; (4)Low thermal impedance: VF=1.0V; (5)Universal 3-way terminals.

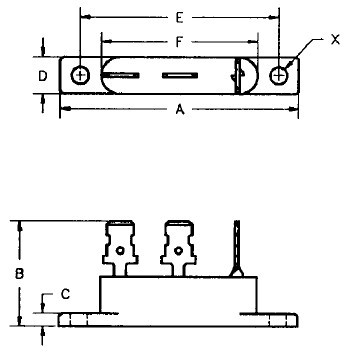

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

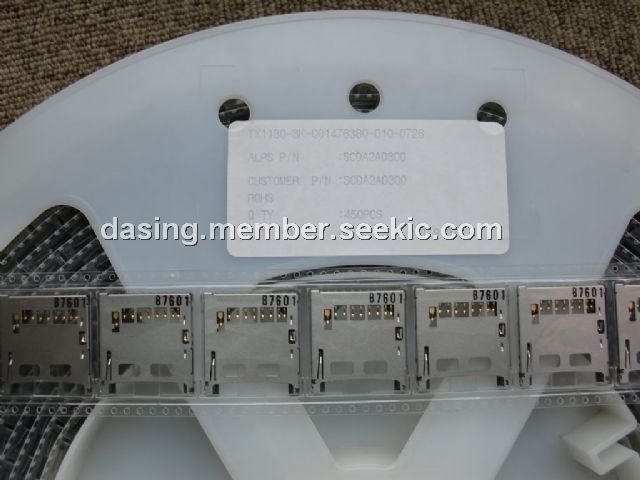

![]() SCDA2A0300 |
![]() ALPS |
![]() Memory Card Connectors SD MMC Reverse mount 0mm stand-off |
![]() Data Sheet |
![]() Negotiable |
|
||||||||
