Product Summary

The UPC358HA is a dual operational amplifier which is designed to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the power supply current drain is very low. Further advantage of the UPC358HA, the input commonmode voltage range includes ground in the linear mode.

Parametrics

UPC358HA absolute maximum ratings: (1)Voltage between V+ and V–: V+ – V– –0.3 to +32 V; (2)Differential Input Voltage VID: ±32 V; (3)Input Voltage Note 2 VI V––: -0.3 to V–+32 V; (4)Output Voltage Note 3 VO V––: -0.3 to V++0.3 V; (5)Power Dissipation C Package PT: 350 mW; (6)Output Short Circuit Duration: Indefinite s; (7)Operating Ambient Temperature TA: –20 to +80 ℃; (8)Storage Temperature Tstg: –55 to +125 ℃.

Features

UPC358HA features: (1)Internally frequency compensation; (2)Wide output voltage swing V- to V+ -1.5 V; (3)Common mode input voltage range includes V-; (4)Wide supply voltage range: 3 V to 30 V (Single); ±1.5 V to ±5 V (Split); (5)Output short circuit protection.

Diagrams

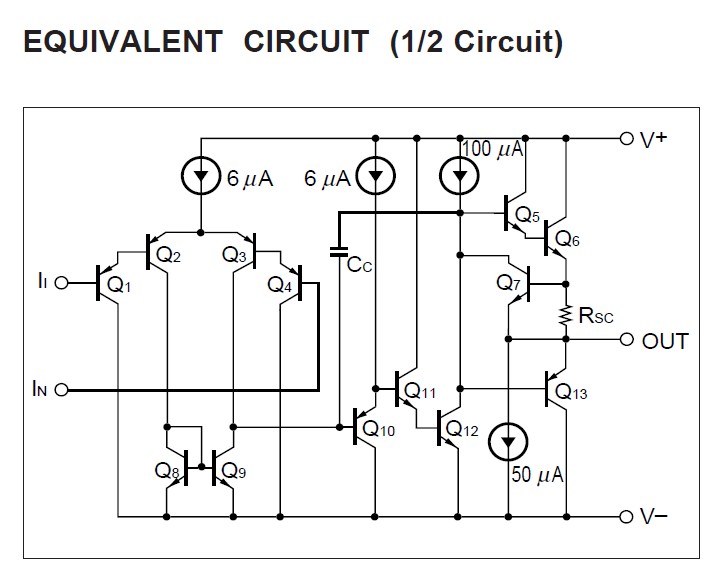

UPC358HA equivalent circuit
