Product Summary

The AD8310ARMZ is a complete, dc-440 MHz demodulating logarithmic amplifier (log amp) with a very fast voltage-mode output capable of driving up to 25 mA into a grounded load in under 15 ns. The AD8310ARMZ uses the progressive compression (successive detection) technique to provide a dynamic range of up to 95 dB to ±3 dB law conformance or 90 dB to a ±1 dB error bound up to 100 MHz. The applications of the AD8310ARMZ include: (1)Conversion of Signal Level to Decibel Form; (2)Transmitter Antenna Power Measurement; (3)Receiver Signal Strength Indication (RSSI); (4)Low-Cost Radar and Sonar Signal-Processing; (5)Network and Spectrum Analyzers; (6)Signal-Level Determination Down to 20 Hz; (7)True-Decibel AC Mode for Multimeters.

Parametrics

AD8310ARMZ absolute maxing ratings: (1)Supply Voltage VS: 7.5V; (2)Input Power (re 50 Ω), Single-Ended: 18dBm; Differential Drive: 22dBm; (3)Internal Power Dissipation: 200mW; (4)θJA: 200℃/W; (5)Maximum Junction Temperature: 125℃; (6)Operating Temperature Range: –40℃ to +85℃; (7)Storage Temperature Range: –65℃ to +150℃; (8)Lead Temperature Range (Soldering 60 sec): 300℃.

Features

AD8310ARMZ features: (1)Multistage Demodulating Logarithmic Amplifier; (2)Voltage Output, Rise-Time <15 ns; (3)High-Current Capacity: 25 mA into Grounded RL; (4)95 dB Dynamic Range: –91 dBV to +4 dBV; (5)Single Supply of 2.7 V Min at 8 mA Typ; (6)DC-440 MHz Operation, ±0.4 dB Linearity; (7)Slope of 24 mV/dB, Intercept of –108 dBV; (8)Highly Stable Scaling over Temperature; (9)Fully Differential DC-Coupled Signal Path; (10)100 ns Power-Up Time, 1 μA Sleep Current.

Diagrams

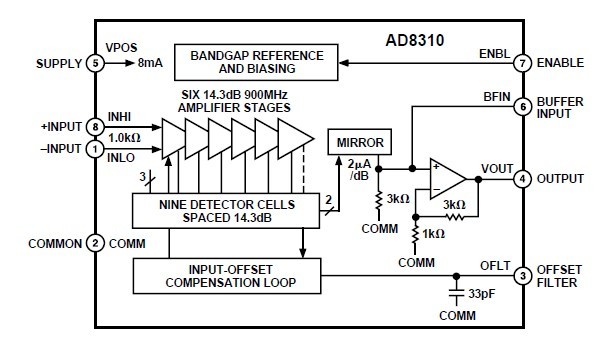

AD8310ARMZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD8310ARMZ
AD8310ARMZ


IC LOGARITHMIC AMP 95DB 8-MSOP

Data Sheet

0-1: $5.89
1-10: $5.30
10-25: $4.83
25-100: $4.36
100-250: $4.00
250-500: $3.65
500-1000: $3.18
1000-2500: $3.14
AD8310ARMZ-REEL7
AD8310ARMZ-REEL7


IC AMP LOGARITHMIC 8MSOP

Data Sheet

0-1000: $3.18
