Product Summary
The ADAU1592ASVZ is a 2-channel, bridge-tied load (BTL) switching audio power amplifier with an integrated Σ-Δ modulator. The modulator accepts an analog input signal and generates a switching output to drive speakers directly. A digital, microcontroller-compatible interface provides control of reset, mute and PGA gain as well as output signals for thermal and overcurrent error conditions. The output stage can operate from supply voltages ranging from 9 V to 18 V. The analog modulator of ADAU1592ASVZ and digital logic operate from a 3.3 V supply.
Parametrics
ADAU1592ASVZ absolute maximum ratinsg: (1)DVDD to DGND: -0.3 V to +3.6 V; (2)AVDD to AGND: -0.3 V to +3.6 V; (3)PVDD to PGND1: -0.3 V to +20.0 V; (4)MUTE/STDN Inputs: DGND -0.3 V to DVDD + 0.3 V; (5)Operating Temperature Range: -40℃ to +85℃; (6)Storage Temperature Range: -65℃ to +150℃; (7)Maximum Junction Temperature: 150℃; (8)Lead Temperature Soldering (10 sec): 260℃; (9)Vapor Phase (60 sec): 215℃; (10)Infrared (15 sec): 220℃.
Features
ADAU1592ASVZ features: (1)Integrated stereo modulator and power stage; (2)0.005% THD + N; (3)101 dB dynamic range; (4)PSRR > 65 dB RDS-ON < 0.3 Ω (per transistor); (5)Efficiency > 90% (8 Ω); (6)EMI-optimized modulator; (7)On/off-mute pop-noise suppression; (8)Short-circuit protection; (9)Overtemperature protection.

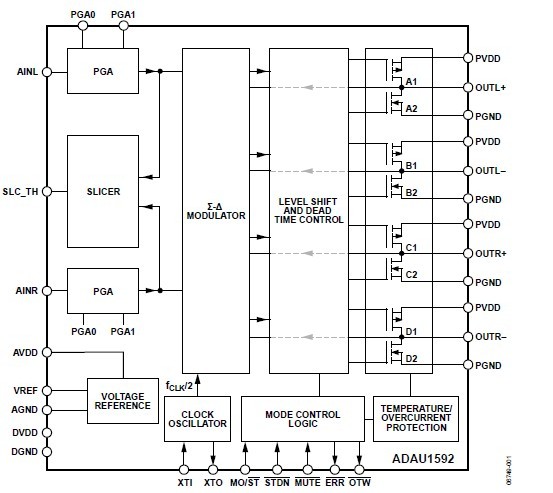

Diagrams
