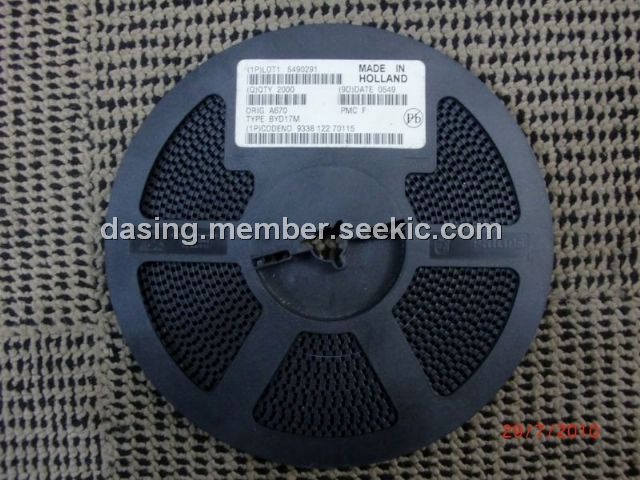

Product Summary
The BYD17M is a general purpose controlled avalanche rectifier. It is hermetically sealed and fatigue free as coefficients of expansion of all used parts are matched.
Parametrics
BYD17M absolute maximum ratings: (1)VRRM repetitive peak reverse voltage: 1000V; (2)VRWM crest working reverse voltage: 1000V; (3)VR continuous reverse voltage: 1000V.
Features
BYD17M features: (1)Glass passivated; (2)High maximum operating temperature; (3)Low leakage current; (4)Excellent stability; (5)Guaranteed avalanche energy absorption capability; (6)Shipped in 8 mm embossed tape; (7)Smallest surface mount rectifier outline.

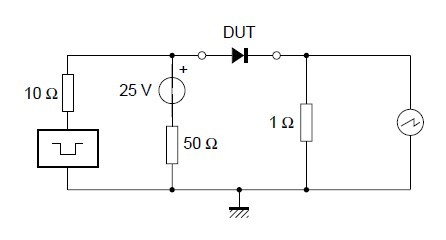

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
BYD17M |
Other |
Data Sheet |
Negotiable |
|
||||||
BYD17MA |
Other |
Data Sheet |
Negotiable |
|
