Product Summary

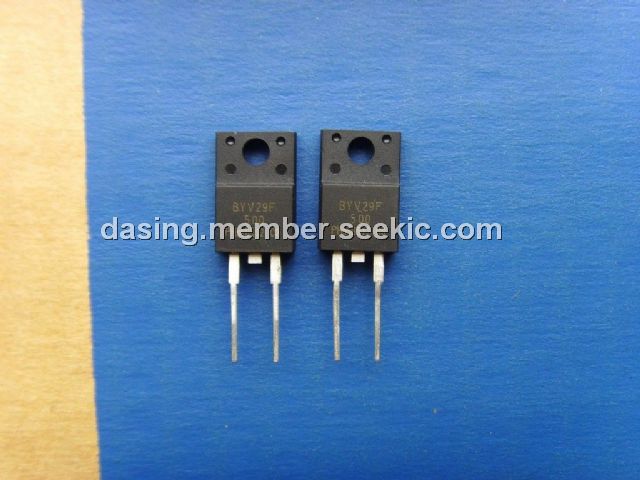

The BYV29F-500 Ultra-fast epitaxial rectifier diode is intended for use in switched mode power supply output rectification, electronic lighting ballasts and high frequency switching circuits in general. The BYV29F-500 is supplied in the SOD100 package.

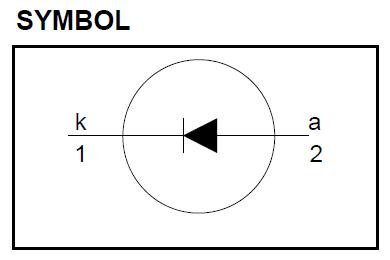

Parametrics

BYV29F-500 absolute maximum ratings: (1)Peak repetitive reverse voltage: 400 V; (2)Continuous reverse voltage: 400 V max at Ths ≤ 138℃; (3)Average forward current: 9 A at square wave; δ = 0.5; Ths ≤ 90 ℃; (4)Non-repetitive peak forward current: 100 A at t = 10 ms, 110 A at t = 8.3 ms; (5)Storage temperature: -40 to 150 ℃; (6)Operating junction temperature: 150 ℃.

Features

BYV29F-500 features: (1)Low forward volt drop; (2)Fast switching; (3)Soft recovery characteristic; (4)High thermal cycling performance; (5)Isolated mounting tab.
