Product Summary

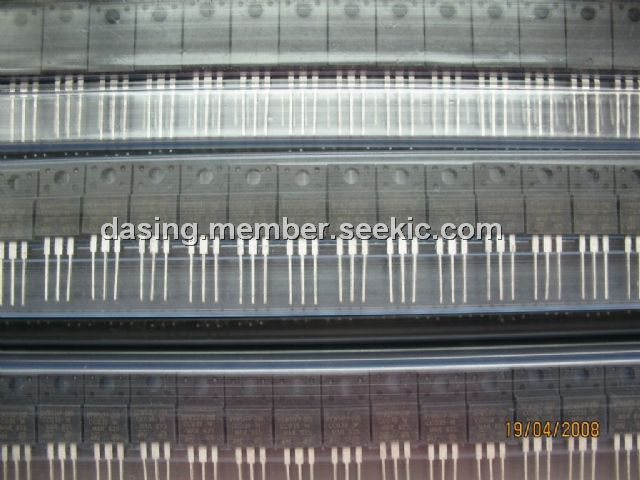

The BYW51FP-200 is a Dual center tap rectifier suited for Switched Mode Power Supplies and high frequency DC to DC converters. Packaged in TO-220AB, ISOWATT220AB, TO-220FP, D2PAK or I2 PAK, the BYW51FP-200 is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.
Parametrics
BYW51FP-200 absolute maximum ratings: (1)VRRM, Repetitive peak reverse voltage: 200 V; (2)IF(RMS), RMS forward current: 20 A; (3)IF(AV), Average forward current: 10 A; (4)IFSM, Surge non repetitive forward current: 100 A; (5)Tstg, Storage temperature range: - 65 to + 150℃; (6)Tj, Maximum operating junction temperature: 150℃.
Features
BYW51FP-200 features: (1)suited for SMPS; (2)very low forward losses; (3)negligible switching losses; (4)high surge current capability; (5)insulated packages (ISOWATT220AB/TO-220FP): Insulation voltage = 2000 V DC; Capacitance = 12 pF.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BYW51FP-200 |
STMicroelectronics |
Rectifiers 2X10 Amp 200 Volt |
Data Sheet |
Negotiable |
|
|||||||||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
BYW51-200G |
ON Semiconductor |
Rectifiers 200V 16A UltraFast |
Data Sheet |
|
|
|||||||||||||
BYW51FP-200 |
STMicroelectronics |
Rectifiers 2X10 Amp 200 Volt |
Data Sheet |
Negotiable |
|
|||||||||||||
BYW52-TR |
Vishay Semiconductors |
Rectifiers 2.0 Amp 200 Volt 50 Amp IFSM |
Data Sheet |
|
|
|||||||||||||
BYW54-TR |
Vishay Semiconductors |
Rectifiers 2.0 Amp 600 Volt 50 Amp IFSM |
Data Sheet |
|
|
|||||||||||||
BYW55-TR |
Vishay Semiconductors |
Rectifiers 2.0 Amp 800 Volt 50 Amp IFSM |
Data Sheet |
|
|
|||||||||||||
BYW53-TR |
Vishay Semiconductors |
Rectifiers 2.0 Amp 400 Volt 50 Amp IFSM |
Data Sheet |
|
|
