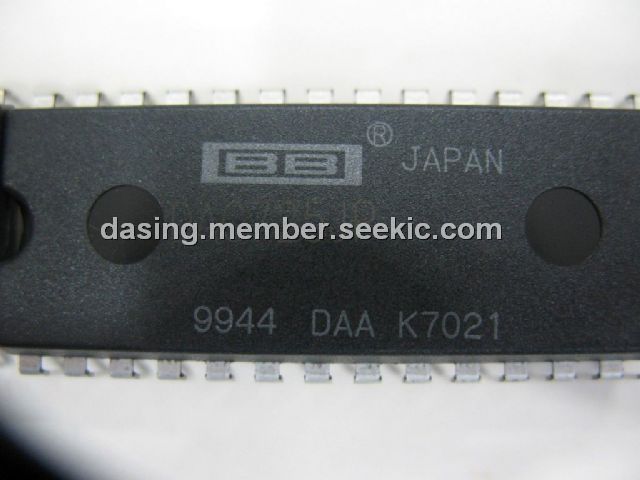

Product Summary
The DAC725JP is a dual 16-bit DAC, complete with internal reference and output op amps. The DAC725JP is designed to interface to an 8-bit microprocessor bus, but can also be interfaced to wider buses. The hybrid construction minimizes the digital feedthrough typically associated with products that combine the digital bus interface circuitry with high-accuracy analog circuitry.
Parametrics
DAC725JP absolute maximum ratings: (1)VDD to COMMON: 0V, +15V; (2)+VCC to COMMON: 0V, +18V; (3)–VCC to COMMON: 0V, –18V; (4)Digital Data Inputs to COMMON: –0.5V, VDD + 0.5; (5)DC Current any Input: ±10mA; (6)Reference Out to COMMON: Indefinite Short to COMMON; (7)VOUT: Indefinite Short to COMMON; (8)External Voltage Applied to RF: ±18V; (9)External Voltage Applied to D/A Output: ±5V; (10)Power Dissipation: 2000mW; (11)Storage Temperature: –60℃ to +150℃; (12)Lead Temperature (soldering, 10s): 300℃.
Features
DAC725JP features: (1)complete dual VOUT DAC; (2)double-buffered input register; (3)high-speed data input: Serial or Parallel; (4)high accuracy: ±0.003% Linearity Error; (5)14-bit monotonicity over temperature; (6)plastic package; (7)clear input to set zero output.

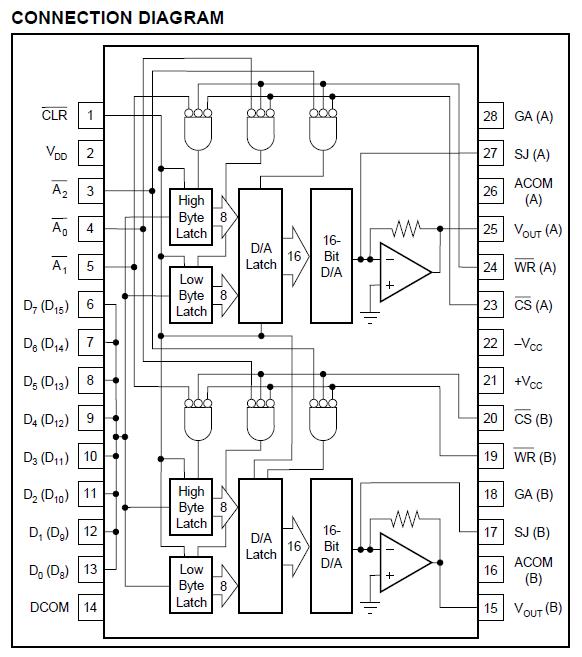

Diagrams
