Product Summary

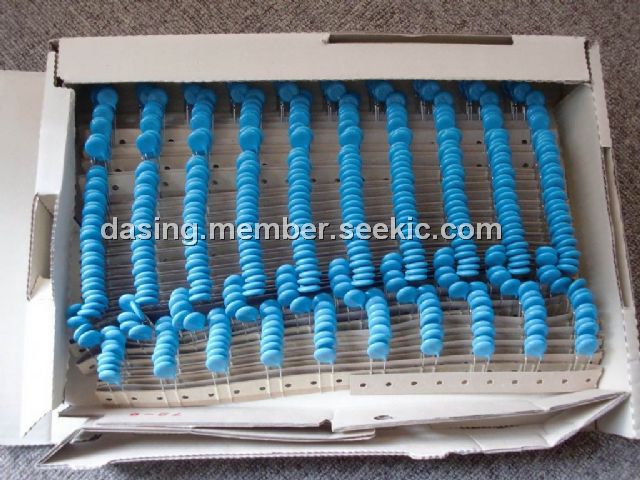

The DEHR33D222KN7A is a High Voltage Ceramic Capacitor.

Parametrics

DEHR33D222KN7A absolute maximum ratings: (1)Temperature Char.: R, ±15% (-25 to +85℃), +15/-30% (+85 to +125℃); (2)Capacitance: 2200pF; (3)Capacitance Tol.: ±10%; (4)Rated Voltage: DC2kV.

Features

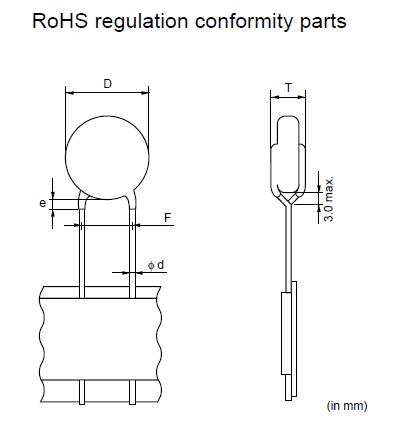

DEHR33D222KN7A features: (1)Body Diameter D: 15mm max.; (2)Body Thickness T: 5.0mm max.; (3)Lead Spacing F: 7.5mm±1.0mm; (4)Lead Diameter: 0.6mm±0.05mm; (5)Coating Extension e: Up to the end of crimp.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DEHR33D222KN7A
DEHR33D222KN7A
Murata
Ceramic Disc Capacitors 0.0022uF 2000 Volts 0.1
Data Sheet
0-1: $0.43
1-50: $0.28
50-100: $0.21
100-500: $0.18
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DEHR32E102KN2A
DEHR32E102KN2A
Murata
Ceramic Disc Capacitors 0.001uF 250Volts 10%
Data Sheet
0-1: $0.22
1-50: $0.10
50-100: $0.09
100-500: $0.07
DEHR32E103KA2B
DEHR32E103KA2B
Murata
Ceramic Disc Capacitors 10000pF 10%
Data Sheet
0-1: $0.28
1-50: $0.17
50-100: $0.14
100-500: $0.11
DEHR32E103KB2B
DEHR32E103KB2B
Murata
Ceramic Disc Capacitors 0.01uF 250 Volts 10%
Data Sheet
0-1: $0.28
1-50: $0.17
50-100: $0.14
100-500: $0.11
DEHR32E103KN2A
DEHR32E103KN2A
Murata
Ceramic Disc Capacitors 0.01uF 250Volts 10%
Data Sheet
0-1: $0.28
1-50: $0.17
50-100: $0.16
100-500: $0.13
DEHR32E152KN2A
DEHR32E152KN2A
Murata
Ceramic Disc Capacitors 0.0015uF 250 Volts 0.1
Data Sheet
0-1: $0.19
1-50: $0.09
50-100: $0.08
100-500: $0.06
DEHR32E221KB2B
DEHR32E221KB2B
Murata
Ceramic Disc Capacitors 220pF 250Volts 10%
Data Sheet
0-1: $0.22
1-50: $0.10
50-100: $0.09
100-500: $0.06
