Product Summary

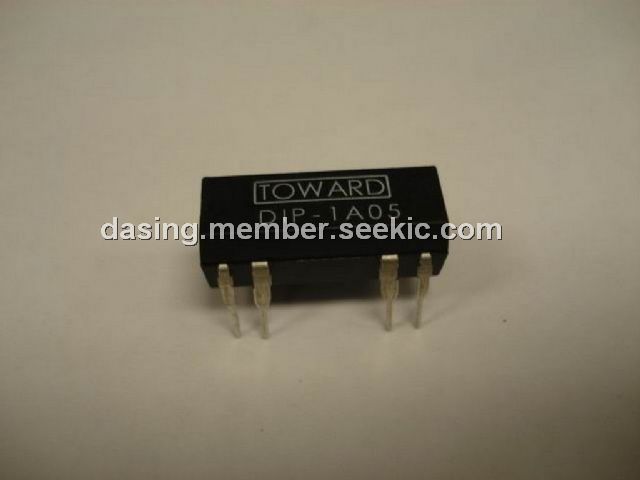

The DIP-1A05 is a reed relay.

Parametrics

DIP-1A05 absolute maximum ratings: (1)max switching power: 10W; (2)max switching voltage: 100VDC or peak AC; (3)max switching current: 0.5A; (4)max carry current: 1A.

Features

DIP-1A05 features: (1)epoxy moldede, 14 pin dual-in-line packages; (2)can be immersed during board cleaning operations; (3)high isolation between input and output; (4)high speed and low driving power; (5)diode and magnetic shield available.

Diagrams

DIP-1A05 wiring diagrams
