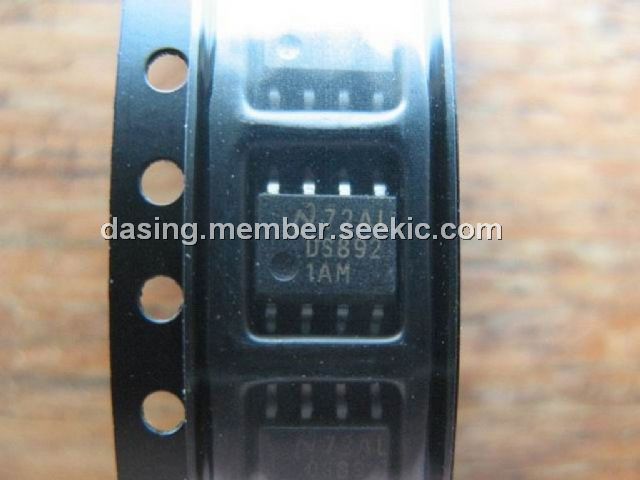

DS8921AM

Driver and Receiver pair, 8SOIC, 5.5V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.45~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.45~1.00

PartNumber:: DS8921AM

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sue ouyang's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-06

From Other Seller

Part Number:DS8921AM
US $0.45 - 1.00
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

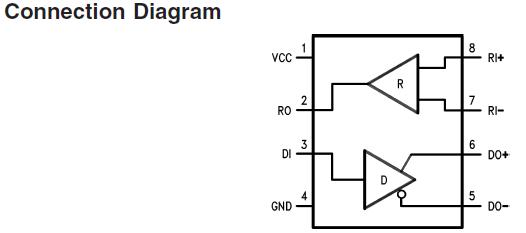

The DS8921AM is a Differential Line Driver and Receiver pair designed specifically for applications meeting the ST506, ST412 and ESDI Disk Drive Standards. In addition, the device meets the requirements of the EIA Standard RS-422. TheDS8921AM offers an input sensitivity of 200 mV over a ±7V common mode operating range. It is designed to provide unipolar differential drive to twisted pair or parallel wire transmission lines. Complementary outputs are logically ANDed and provide an output skew of 0.5 ns (typ.) with propagation delays of 12 ns. The DS8921AM are designed to be compatible with TTL and CMOS.

Parametrics

DS8921AM absolute maximum ratings: (1)Supply Voltage: 7V; (2)Driver Input Voltage: -0.5V to +7V; (3)Output Voltage: 5.5V; (4)Receiver Output Sink Current: 50 mA; (5)Receiver Input Voltage: ±10V; (6)Differential Input Voltage: ±12V; (7)Maximum Package Power Dissipation @ +25℃, M Package: 730 mW; N Package: 1160 mW; (8)Derate M Package: 9.3 mW/℃ above +25℃; (9)Derate N Package: 5.8 mW/℃ above +25℃; (10)Storage Temperature Range: -65℃ to +165℃; (11)Lead Temperature: +260℃; (12)Maximum Junction Temperature: +150℃.

Features

DS8921AM features: (1)12 ns typical propagation delay; (2)Output skew - 0.5 ns typical; (3)Meet the requirements of EIA Standard RS-422; (4)Complementary Driver Outputs; (5)High differential or common-mode input voltage ranges of ±7V; (6)±0.2V receiver sensitivity over the input voltage range; (7)Receiver input hysteresis-70 mV typical; (8)DS8921AT industrial temperature operation: (.40℃ to +85℃).
