Product Summary

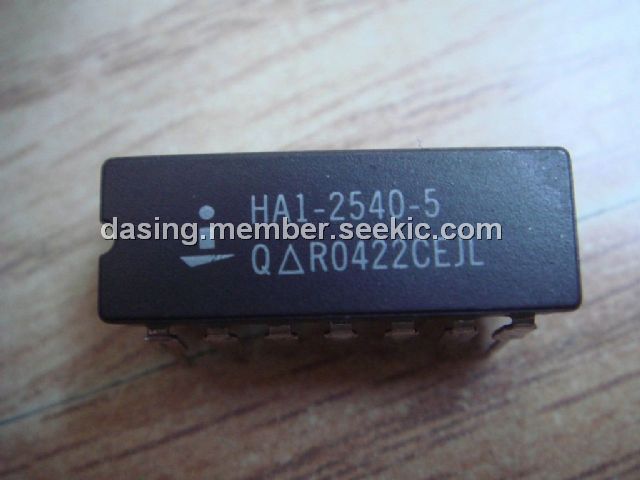

The Intersil HA1-2540-5 is a wideband, very high slew rate, monolithic operational amplifier featuring superior speed and bandwidth characteristics. Bipolar construction coupled with dielectric isolation allows this truly differential device to deliver outstanding performance in circuits where closed loop gain is 10 or greater. Additionally, the HA1-2540-5 has a drive capability of ±10V into a 1kΩ load. Other desirable characteristics include low input voltage noise, low offset voltage, and fast settling time. The applications of the HA1-2540-5 include Pulse and Video Amplifiers, Wideband Amplifiers, High Speed Sample-Hold Circuits, Fast, Precise D/A Converters.
Parametrics
HA1-2540-5 absolute maximum ratings: (1)Voltage Between V+ and V- Terminals: 35V; (2)Differential Input Voltage: 6V; (3)Output Current: 33mARMS Continuous, 50mAPEAK.
Features
HA1-2540-5 features: (1)Very High Slew Rate: 400V/μs; (2)Fast Settling Time: 140ns; (3)Wide Gain Bandwidth (AV≥10): 400MHz; (4)Power Bandwidth: 6MHz; (5)Low Offset Voltage: 8mV; (6)Input Voltage Noise: 6nV/√Hz; (7)Output Voltage Swing: ±10V.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HA1-2540-5 |
|
IC OP AMP 400MHZ MONO 14-CDIP |
Data Sheet |
Negotiable |
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
 |
HA1-2404-4 |
|
IC AMP VFB 4-CHAN 40MHZ 16-DIP |
Data Sheet |
Negotiable |
|
||||||
 |
HA1-2420-2 |
Intersil |
Sample & Hold Amplifiers SMP&HLD 2 5MHZ 3 2US EXTCAP 14CDIP MIL |
Data Sheet |
|
|
||||||
|
HA1-2540-5 |
|
IC OP AMP 400MHZ MONO 14-CDIP |
Data Sheet |
Negotiable |
|
||||||
|
HA1-2556-9 |
|
IC MULTIPLIER 4QUAD VOUT 16-DIP |
Data Sheet |
Negotiable |
|
||||||
|
HA1-4741-2 |
|
IC OPAMP QUAD 3.5MHZ 14-DIP |
Data Sheet |
Negotiable |
|
||||||
|
HA1-4900-2 |
Intersil |
Comparator ICs COMPARATOR 4X PRECISION 16CDIP MIL |
Data Sheet |
|
|
||||||
