MSP430F1612IPM

Product Summary

The MSP430F1612IPM is a mixed signal microcontroller. It consists of several devices featuring different sets of peripherals targeted for various applications. The MSP430F1612IPM features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6 us. The applications of the MSP430F1612IPM include sensor systems, industrial control applications, hand-held meters, etc.

Parametrics

MSP430F1612IPM absolute maximum ratings: (1)Voltage applied at VCC to VSS:-0.3V to 4.1V; (2)Voltage applied to any pin:-0.3V to VCC + 0.3V; (3)Diode current at any device terminal:±2 mA; (4)Storage temperature, Tstg: Unprogrammed device:-55℃ to 150℃, Programmed device:-55℃ to 85℃.

Features

MSP430F1612IPM features: (1)Low Supply-Voltage Range: 1.8 V to 3.6 V; (2)Ultralow Power Consumption; (3)Five Power-Saving Modes; (4)Wake-Up From Standby Mode in Less Than 6 μs; (5)16-Bit RISC Architecture, 125-ns Instruction Cycle Time; (6)Three-Channel Internal DMA; (7)12-Bit Analog-to-Digital (A/D) Converter With Internal Reference, Sample-and-Hold, and Autoscan Feature; (8)Dual 12-Bit Digital-to-Analog (D/A) Converters With Synchronization; (9)16-Bit Timer_A With Three Capture/Compare Registers; (10)16-Bit Timer_B With Three or Seven Capture/Compare-With-Shadow Registers; (11)On-Chip Comparator; (12)Serial Communication Interface (USART0), Functions as Asynchronous UART or Synchronous SPI or I2CTM Interface; (13)Serial Communication Interface (USART1), Functions as Asynchronous UART or Synchronous SPI Interface; (14)Supply Voltage Supervisor/Monitor With Programmable Level Detection; (15)Brownout Detector; (16)Bootstrap Loader; (17)Serial Communication Interface (USART1),; (18)Functions as Asynchronous UART or; (19)Synchronous SPI Interface; (20)Supply Voltage Supervisor/Monitor With Programmable Level Detection Brownout Detector Bootstrap Loader.

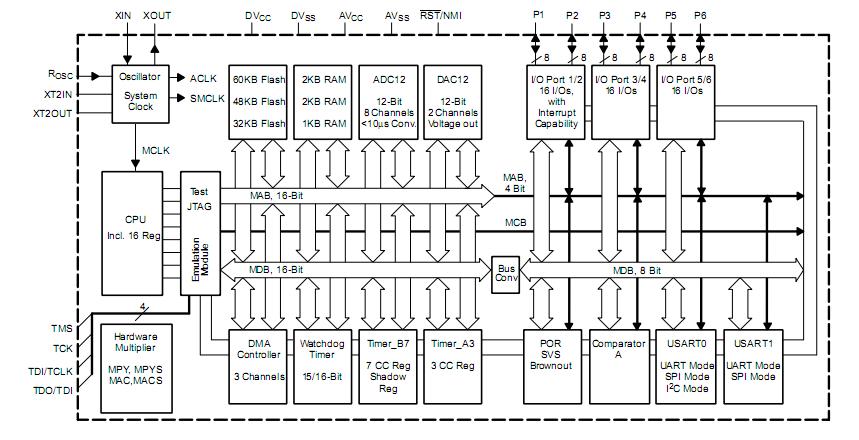

Diagrams
