Product Summary

The SRCN6A16-10P is a low cost, light weight, general purpose, circular connector with soldering termination. It is recognized under the component program of underwriter laboratories, File No. E-67741(s).The applications of the SRCN6A16-10P are broadcast and communication systems, medical equipment, telecommunications, measurement equipment, business machines, computers and peripherals, automation equipment, tooling, controlling devices, vending machines, electronic entertainment equipment and other electronic equipment.

Parametrics

SRCN6A16-10P general specifications: (1)Connector types:Straight plug ; (2)Number of positions:10 ; (3)Shell Size:16 ; (4)Contact type:Pin ; (5)Contact arrangement code:16-10 ; (6)Contact size * No. of contacts:#20*10 ; (7)Applicable wire size (mm2):0.5 max. ; (8)Applicable wire (AWG No.):#20 AWG max. ; (9)Finish of contact in contact area:Silver ; (10)Current Rating (Amps):5 max. ; (11)Dielectric Withstanding Voltage (VACr.m.s. 1 minute):1000 ; (12)Insulation resistance (megohms min.):1000 min. ; (13)Contact resistance (milliohms (1 VDC)):5 max. ; (14)Waterproof:Non Waterproof ; (15)Outer shell color:Nickel plating; (16)operating voltage:250VAC r.m.s; (17)operating voltage:-25℃ to +85℃.

Features

SRCN6A16-10P features: (1)miniature, lightweight, solid construction; (2)general purpose; (3)low cost connector; (4)product approved by UL standard:File No.E-67741(s); (5)highly reliable contact finish; (6)stable connections; (7)positive polarzation with five keys and keyways.

Diagrams

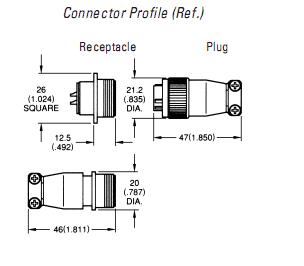

SRCN6A16-10P package dimensions
