Product Summary

The VJ1206V475MXJCW1BC is a surface mount multilayer ceramic chip capacitor for TCC critical applications.

Parametrics

VJ1206V475MXJCW1BC specifications: (1)length(L): 0.126 ± 0.008 [3.20 ± 0.20]; (2)width(W): 0.063 ± 0.008 [1.60 ± 0.20]; (3)maximum thickness(T): 0.067 [1.70]; (4)termination (P): minimum=0.010 [0.25]; maximum=0.028 [0.71].

Features

VJ1206V475MXJCW1BC features: (1)Designed for excellent T/VCC; (2)Temperature voltage coefficient (T/VCC) does not exceed - 25 % at rated voltage; (3)Excellent aging characteristics; (4)Surface mount, precious metal technology, wet build process.

Diagrams

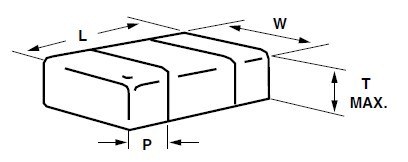

VJ1206V475MXJCW1BC dimensions
