Product Summary

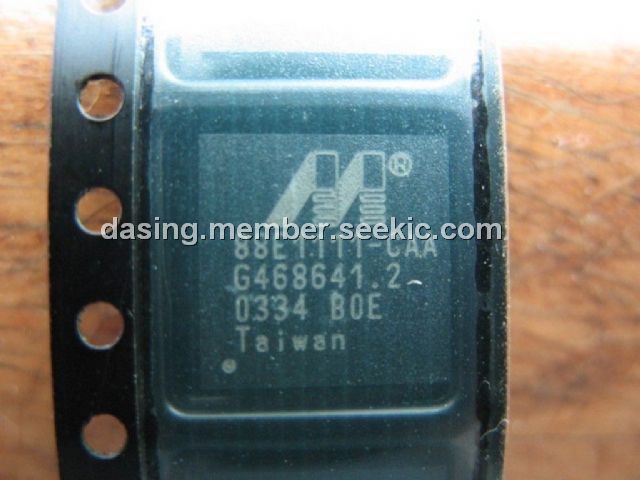

The 88E1111-CAA is a Gigabit Ethernet Transceiver. It is a physical layer device for Ethernet 1000BASE-T, 100BASE-TX, and 10BASE-T applications. The 88E1111-CAA is manufactured using standard digital CMOS process and contains all the active circuitry required to implement the physical layer functions to transmit and receive data on standard CAT 5 unshielded twisted pair.
Parametrics
88E1111-CAA absolute maximum rating: supply voltage: 3.3V.
Features
88E1111-CAA features: (1)10/100/1000BASE-T IEEE 802.3 compliant; (2)Supports GMII, TBI, reduced pin count GMII (RGMII), reduced pin count TBI (RTBI), and serial GMII (SGMII) interfaces; (3)Integrated 1.25 GHz SERDES for 1000BASE-X fiber applications; (4)Four RGMII timing modes; (5)Energy Detect and Energy Detect+ low power modes; (6)Three loopback modes for diagnostics; (7)Downshift mode for two-pair cable installations; (8)Fully integrated digital adaptive equalizers, echo cancellers, and crosstalk cancellers; (9)Advanced digital baseline wander correction; (10)Automatic MDI/MDIX crossover at all speeds of operation; (11)Automatic polarity correction; (12)IEEE 802.3u compliant Auto-Negotiation; (13)Software programmable LED modes including LED testing; (14)Automatic detection of fiber or copper operation; (15)Supports IEEE 1149.1 JTAG.
Diagrams
 |
