Product Summary

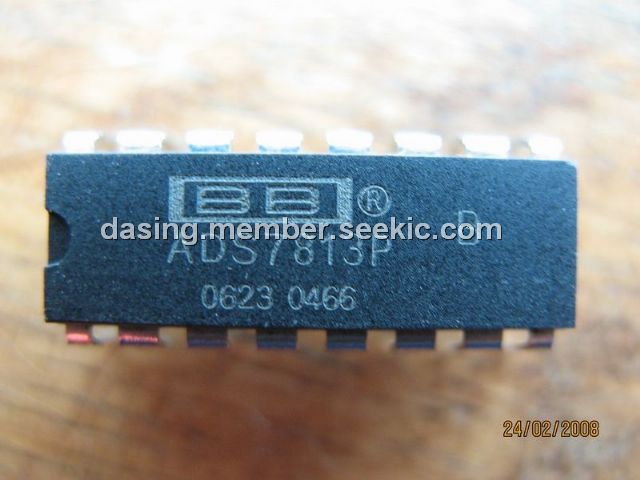

The ADS7813P is a low-power, single +5V supply, 16-bit sampling analog-to-digital converter. The ADS7813P contains a complete 16-bit capacitor-based SAR A/D with a sample/hold, clock, reference, and serial data interface. The applications of ADS7813P include: medical instrumentation, data acquisition systems, robotics,industrial control and so on.

Parametrics

ADS7813P maximum ratings: (1)Analog Inputs: R1IN= ±16.5V, R2IN= GND – 0.3V to +16.5V,; (2)R3IN= ±16.5V, REF= GND – 0.3V to VS + 0.3V, CAP= Indefinite Short to GND Momentary Short to VS; (3)VS: 7V; (4)Digital Inputs: GND – 0.3V to VS + 0.3V; (5)Maximum Junction Temperature: +165℃; (6)Internal Power Dissipation: 825mW; (7)Lead Temperature (soldering, 10s): +300℃.

Features

ADS7813P features: (1)20μs max CONVERSION TIME; (2)SINGLE +5V SUPPLY OPERATION; (3)PIN-COMPATIBLE WITH 12-BIT ADS7812; (4)EASY-TO-USE SERIAL INTERFACE; (5)16-PIN 0.3" PLASTIC DIP AND SOIC; (6)±2.0LSB max INL; (7)87dB min SINAD; (8)USES INTERNAL OR EXTERNAL; (9)REFERENCE; (10)MULTIPLE INPUT RANGES; (11)35mW max POWER DISSIPATION; (12)NO MISSING CODES; (13)50mW POWER DOWN MODE.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADS7813P
ADS7813P
Texas Instruments
ADC (A/D Converters) Low-Power Serial 16-Bit Sampling
Data Sheet
0-1: $20.57
1-10: $19.35
10-25: $18.13
25-50: $17.78
ADS7813PB
ADS7813PB
Texas Instruments
ADC (A/D Converters) Low-Power Serial 16-Bit Sampling
Data Sheet
0-16: $23.02
16-25: $21.57
25-50: $21.16
50-100: $19.31
ADS7813PG4
ADS7813PG4
Texas Instruments
ADC (A/D Converters) Low-Power Serial 16-Bit Sampling
Data Sheet
0-16: $19.35
16-25: $18.13
25-50: $17.78
50-100: $16.24
ADS7813PBG4
ADS7813PBG4
Texas Instruments
ADC (A/D Converters) Low-Power Serial 16-Bit Sampling
Data Sheet
0-16: $23.02
16-25: $21.57
25-50: $21.16
50-100: $19.31
